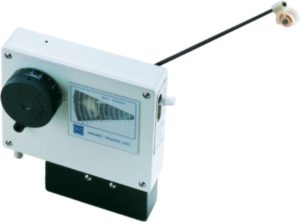

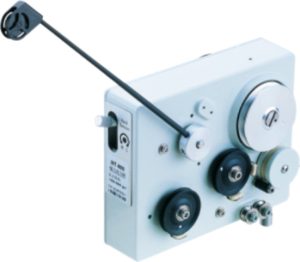

MT/MTA Series Magnetic Tensioner
Tension torque is generated from the magnetic force so that no mechanical contact inside for long term and stable use. Precision can be guaranteed.
Specifications:
| Model | Reference Wire Diameter Range (mm) | Tension Range (g.f) |
| MT/MTA/MTC-30 | Φ0.02-0.06 | 3-30 |
| MT/MTA/MTC-100 | Φ0.04-0.12 | 10-100 |
| MT/MTA/MTC-200 | Φ0.06-0.16 | 25-200 |
| MT/MTA/MTC-400 | Φ0.08-0.25 | 50-400 |
| MT/MTA/MTC-600 | Φ0.12-0.35 | 80-600 |
| MT/MTA/MTC-800 | Φ0.14-0.40 | 100-800 |
| MT/MTA-1000 | Φ0.14-0.45 | 100-1000 |
| MT/MTA-1500 | Φ0.25-0.50 | 100-15000 |
MT series = Standard magnetic tensioner
MTA series = Air-operated magnetic tensioner with attenuation
S series for tension range with 30-400 g.f
L series for tension range with 800-1500 g.f
Application of payoff / unwinding process with electronic tensioners.
