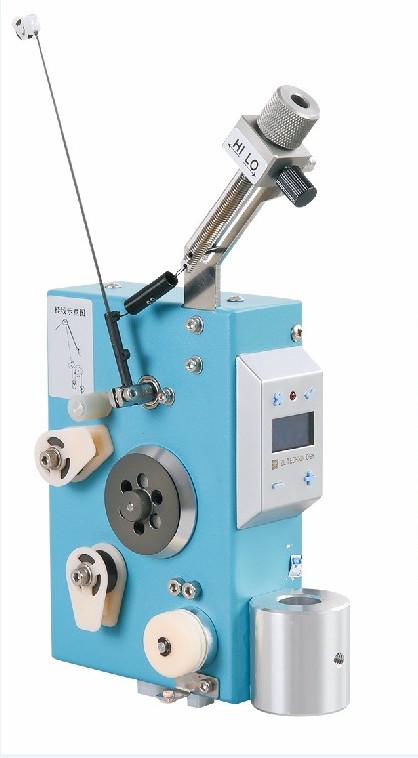

Hysteresis brake is adopted in this series for accurate control of tension. Tension is changed with the input current which is shown on LCD display.
Features:
1. Intelligent control: Multiple tension values can be switched by input signal.
2. RS485 communcation: Remote control by PC, PLC or other industrial equipment.
Specifications:
Model | Reference Wire Diameter Range (mm) | Tension Range (g.f) |
RMA-100/L-R/RD | Φ0.04-0.12 | 10-100 |
RMA-200/L-R/RD | Φ0.06-0.16 | 15-200 |
RMA-300/L-R/RD | Φ0.08-0.25 | 30-300 |
RMA-500/L-R/RD | Φ0.12-0.35 | 60-500 |
RMA-1000/L-R/RD | Φ0.15-0.45 | 100-1000 |
RMA-2000/L-R/RD | Φ0.3-0.6 | 200-2000 |
Demo of RMB8000 Electronic Tensioner
